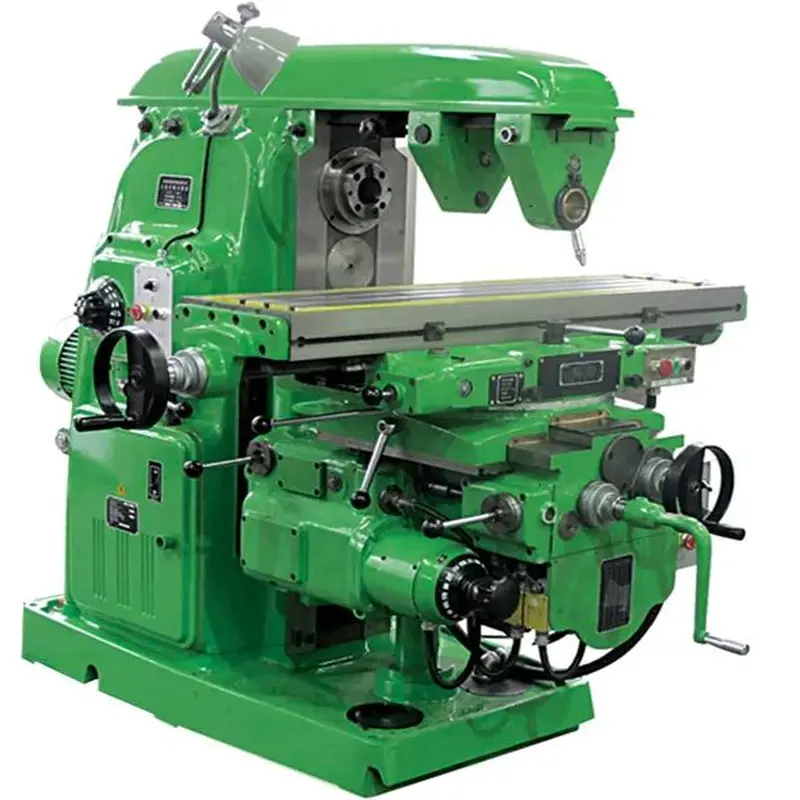

X6132 Фрезерный станок без ЧПУ

Product Description

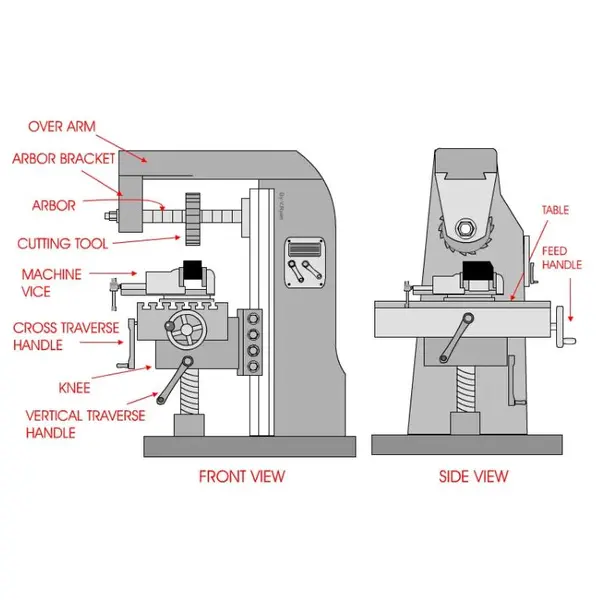

The Horizontal Milling Machine is a very robust and sturdy machine. A variety of cutters are available to removed/shape material that is normally held in a strong machine vice. This horizontal miller is used when a vertical miller is less suitable. For instance, if a lot of material has to be removed by the cutters or there is less of a need for accuracy - a horizontal milling machine is chosen.

расследование

описание

Specifications	Units	X6132
Table size	mm	320×1325
Max. longitudinal of table travel(manual/automatic)	mm	700/680
Max. transverse travel of table (manual/automatic)	mm	255/240
Max. vertical travel of table (manual/automatic)	mm	320/300
Max rotary angle of table		±45°
Distance between spindle axis and column guide way	mm	30-350
Spindle speed step		18
Spindle speed range	r.m.p	30-1500
Feed range of table travel		18
Main motor power	kw	7.5
Rapid motor power	kw	2.2
Overall dimension	mm	2294×1770×1610
N.W./G.W.	kg	2650/2950
