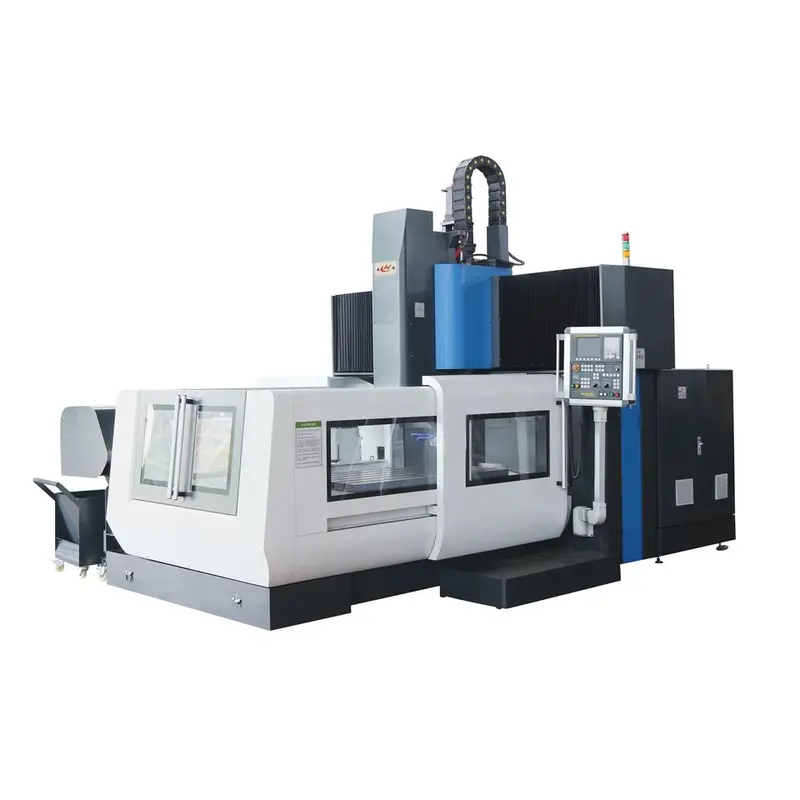

GMC1611 Портальный обарбатывающий центр

Product Application

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

расследование

описание

Specifications	Units	GMC1611
Table size	mm	1800x800
X axis travel	mm	1600
Y axis travel	mm	1100
Z axis travel	mm	600
Distance from spindle axis to column surface	mm	406.5
Distance between spindle nose and worktable surface	mm	140-740
Columns distance	mm	1100mm
Distance between table and cross beam		937
T slot(number-width-pitch)		5-18x140
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40 (Optional:BT50 )
Main motor power	kw	15/18.5
Guide rail type		Linear rail
X/Y/Z rapid traverse speed	m/min	12/12/12
Max.table load	Kg	2500
Distance from table to floor	mm	Around 800
Cutting feed speed	mm/min	1-10000
Positioning accuracy	mm	±0.005/300
Repeat positioning accuracy	mm	±0.004
Tool magazine		Arm 24
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart) Optional: φ112 (Adjacent)/ φ200(Apart)
Max.tool weight	kg	8 (Optional: 18)
Machine weight	kg	13000
Overall dimension	mm	4500x3000x3600
