Product Application

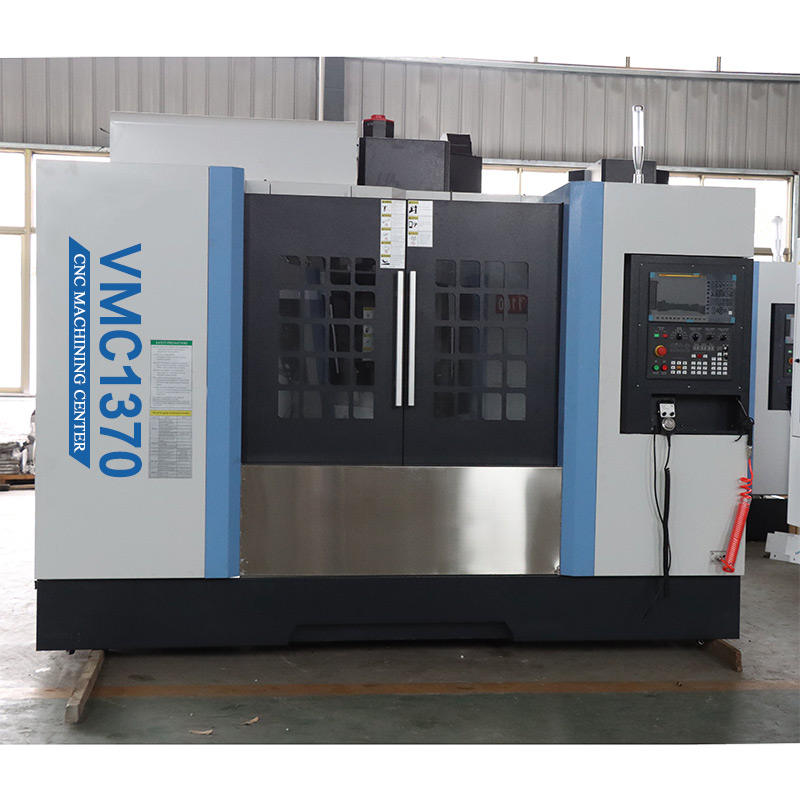

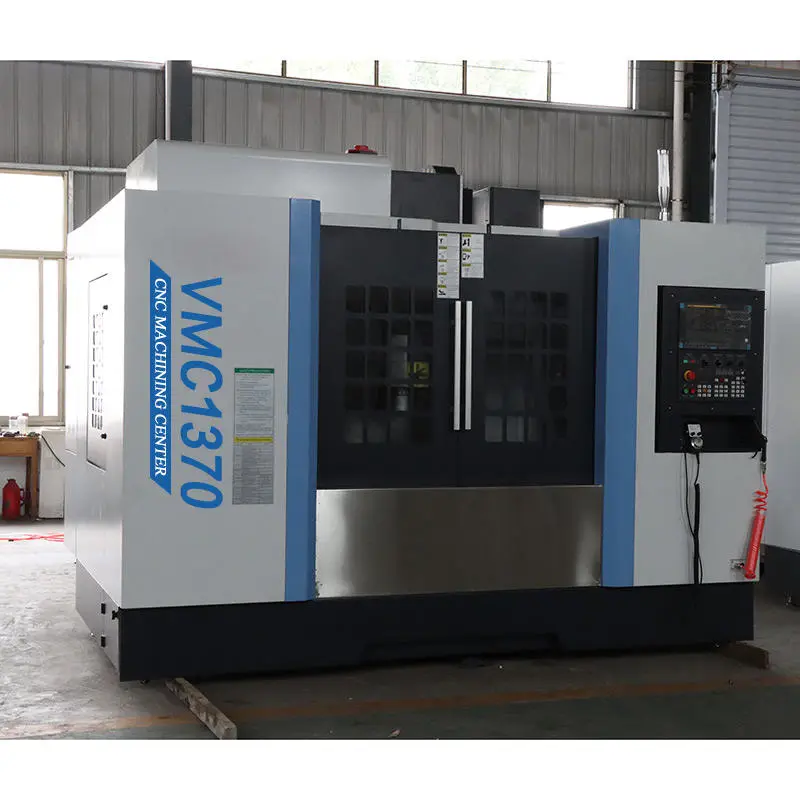

This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Specifications | Units | VMC1370 |
Table size | mm | 1400x700 |
X axis travel | mm | 1300 |
Y axis travel | mm | 700 |
Z axis travel | mm | 700 |
Max. worktable load | kg | 1000 |
T slot(number-width-pitch) | 5-18x125 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40/BT50 |
Main motor power | kw | 11-15 |
X/Y/Z rapid traverse speed | m/min | 24/24/18 (Optional:48/48/36 ) |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 810 |
Distance between spindle nose and worktable surface | mm | 150-850 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm 24 | |
Max.tool weight | kg | 15 |
Machine weight | kg | 9000 |
Overall dimension | mm | 3500X2800X3200 |
