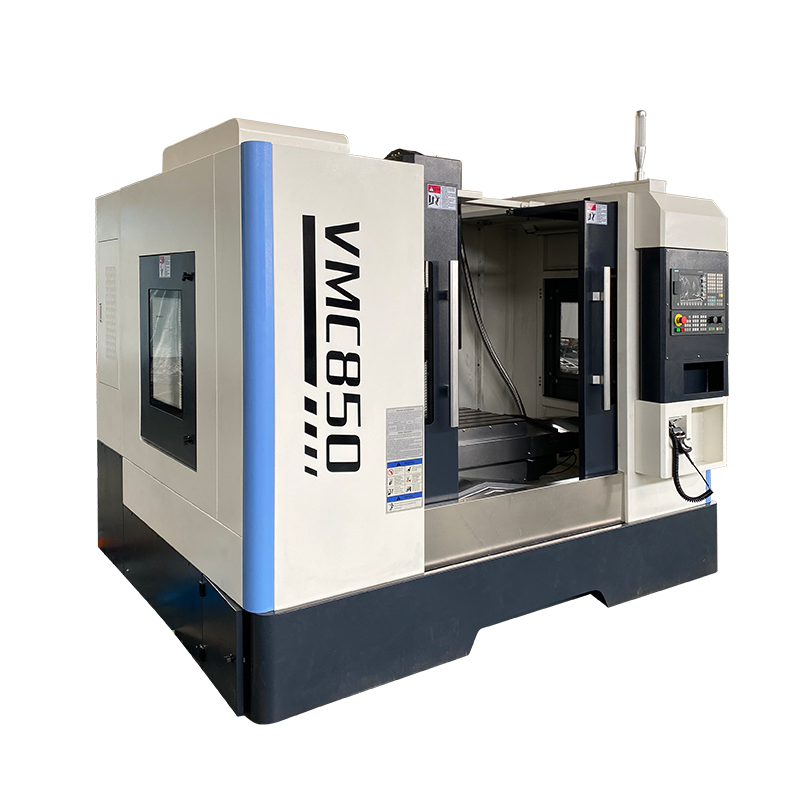

VMC850 Вертикальный обрабатывающий центр

Vertical CNC machining center main features:

1.Taiwan ROYAL spindle unit with 7.5KW servo motor can achieve a rotation speed of 8000rpm. Low speed is for gravity cutting, and high speed is good for precision light cutting.

2. X, Y, Z axis are all use linear guideways, and they are all imported from Germany. The big size of linear guideway can decrease the gap of different guideway, and it can increase precision meantime.

3. It adopts Taiwan PMI precision ball screw, Taiwan YINSH precision locknuts and Japan NSK bearings. It directly connected to flexible coupling, so that it can achieve a high effectiveness and low backlash.

4. It has disc-type tool changer, can load up to 24 tools, and so that it can choose the closest tool and save time.

5. All the transmission shaft pitch is used high-precision laser interferometer to fulfill the adjusting of pitch error and

clearance error, so that the positioning accuracy of each axis is more accurate, and it’s more suitable to produce high -

precision parts.

6. It introduced an automatic quantitative clearance centralized lubrication system to lubricate moving parts such as guideway, ball screw and so on.
