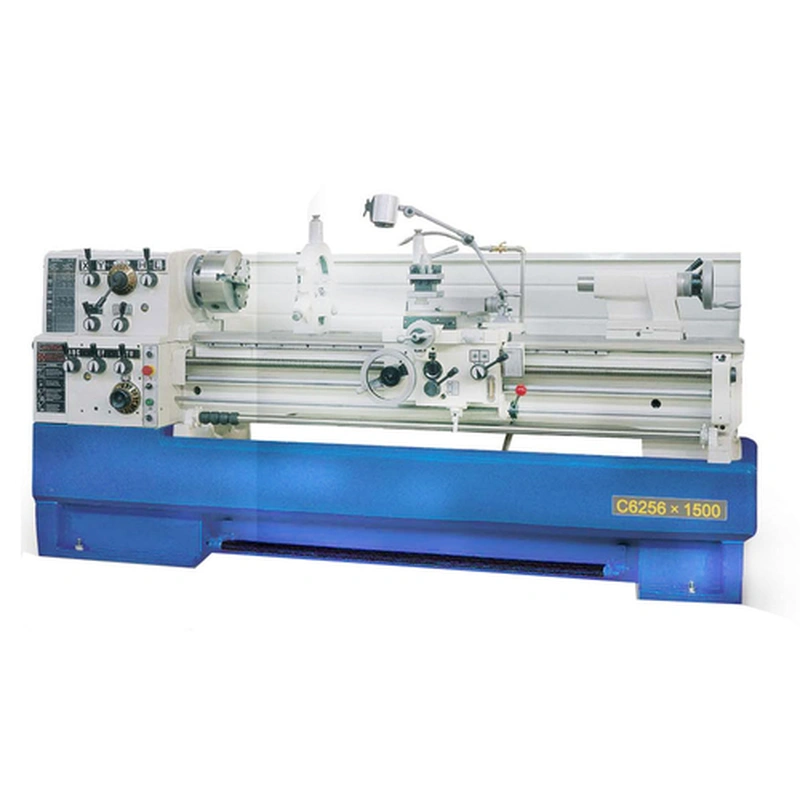

C6251 Горизонтальный токарный станок без ЧПУ

C6251 Горизонтальный токарный станок без ЧПУ

The main performance characteristics:

1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the agreeability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.

описание

Specification

型号

Models

C6251×1000/1500/2000/3000

C6251V×1000/1500/2000/3000

C6256×1000/1500/2000/3000

C6256V×1000/1500/2000/3000

CAPACITY

Swing over red

510mm(20")

560mm(22")

Swing over cross slide

305mm(11-7/8")

355mm(13-3/4")

Swing in gap diameter

735mm(29")

785mm(31")

Valid length of gap

200mm(8")

Distance between centers

1000mm(40")

1500mm(60")

2000mm(80")

3000mm(120")

1000mm(40")

1500mm(60")

2000mm(80")

3000mm(120")

Center height

1135mm

1160mm

Width of bed

350mm(13-3/4")

HEADSTOCK

Spindle nose

D1-8

Spindle bore

80mm(3-1/8")

Taper of spindle bore

No.7Morse

Range of spindle speed

12changes25-1600r/min

25~1600r/min(variable)

12changes25-1600r/min

25~1600r/min(variable)

FEEDS AND THREADS

Compound rest travel

130mm(5-1/8")

Cross slide travel

316mm(12-15/16")

Lead screw thread

6mm or 4T.P.I

Max. section of tool

25×25mm(1×1")

Longitudinal feeds range

35 kinds 0.059-1.646mm/rev (0.0022"-0.0612"/rev)

Cross feeds range

35 kinds 0.020-0.573mm/rev (0.00048"-0.01354"/rev)

Threads metric pitches

47 kinds 0.2-14mm

Threads imperial pitches

60 kinds 2-112T.P.I

Threads diametral pitches

50 kinds 4-112D.P.

Threads module pitches

39 kinds 0.1-7M.P.

        TALLSTOCK

Quill diameter

75mm(3")

Quill travel

180mm(7")

Quill taper

No.5Morse

Cross adjustment

±13mm(±1/2")

MOTOR

Main motor power

7.5kW(10HP)3PH

Coolant pump power

0.1kW(1/8HP),3PH

DIMENSION AND WEIGHT

Overall dimension(L×W×H) (cm)

239×115×143

284×115×143

334×115×143

434×115×143

239×115×146

284×115×146

334×115×146

434×115×146

Packing size(L×W×H) (cm)

245×115×174

290×115×174

340×115×174

440×115×174

245×115×174

290×115×174

340×115×174

440×115×174

Net weight/Gross weight (kg)

2035/2415

2160/2550

2435/2840

2805/3270

2160/2555

2285/2690

2560/2980

2930/3410
