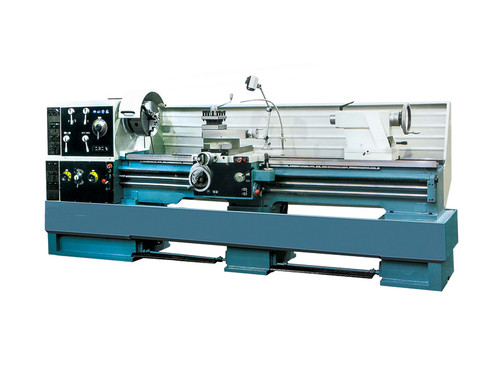

MACHINE TOOL TYPE | C6266(A) | CQ6280 |
CAPACITY | ||
Swing Over Slide | Φ660mm | |
Swing Over Cross Slide | Φ440mm | Φ570mm |
Swing in Gap Diameter | Φ900mm | Φ1035mm |
Length of Gap | 250mm | |
Center Height | 330mm | |
Distance Between Centers | 1500mm/2000mm/3000mm | |
Width of Bed | 400mm | 400mm |
Max. Section of Tool | 25mm × 25mm | |
Max. Travel of Cross Slide | 368mm | 420mm |
Max. Travel of Compound Rest | 230mm | 230mm |
HEADSTOCK | ||
Spindle Bore | Φ105mm | |
Spindle Nose | D1-8 | |
Taper of Spindle Bore | Φ113mm(1:20)/MT5 | |
Spindle Speed Number | 16 | |
Range of Spindle Speed | 25～1600rpm | 25～1600rpm |
FEEDS AND THREADS | ||
Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | |
Inch Threads Range | 7/16～80T.P.I. (54 kinds) | |
Metric Threads Range | 0.45～120mm (54 kinds) | |
Diametrical Pitches Range | 7/8～160DP (42 kinds) | |
Module Pitches Range | 0.25～60MP (46 kinds) | |
Longitudinal Feeds Range in Metric Lead Screw | 0.044～1.48mm/rev (25 kinds) | |
Longitudinal Feeds Range in Inch Lead Screw | 0.00165"～0.05497"/rev (25 kinds) | |
Cross Feeds Range in Metric Lead Screw | 0.022～0.74mm/rev (25 kinds) | |
Cross Feeds Range in Inch Lead Screw | 0.00083"～0.02774"/rev (25 kinds) | |
TAILSTOCK | ||
Quill travel | 235mm | |
Quill diameter | Φ90mm | |
Quill taper | MT5 | |
MOTOR | ||
Main motor power | 7.5kW(10HP) | |
Coolant pump power | 0.09kW (1/8HP) | |
DIMENSION AND WEIGHT | ||
Overall Dimension (L×W×H) | 321/371/471cm×123cm×160cm | 321/371/471cm×123cm×167cm |
Packing Size (L×W×H) | 324/374/474cm×114cm×184cm | 324/374/474cm×114cm×191cm |
Net Weight | 3060/3345/3710kg | 3220/3505/3870kg |
Gross Weight | 3535/3835/4310kg | 3705/4005/4480kg |
