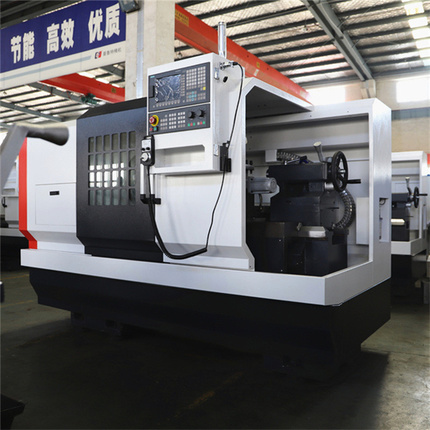

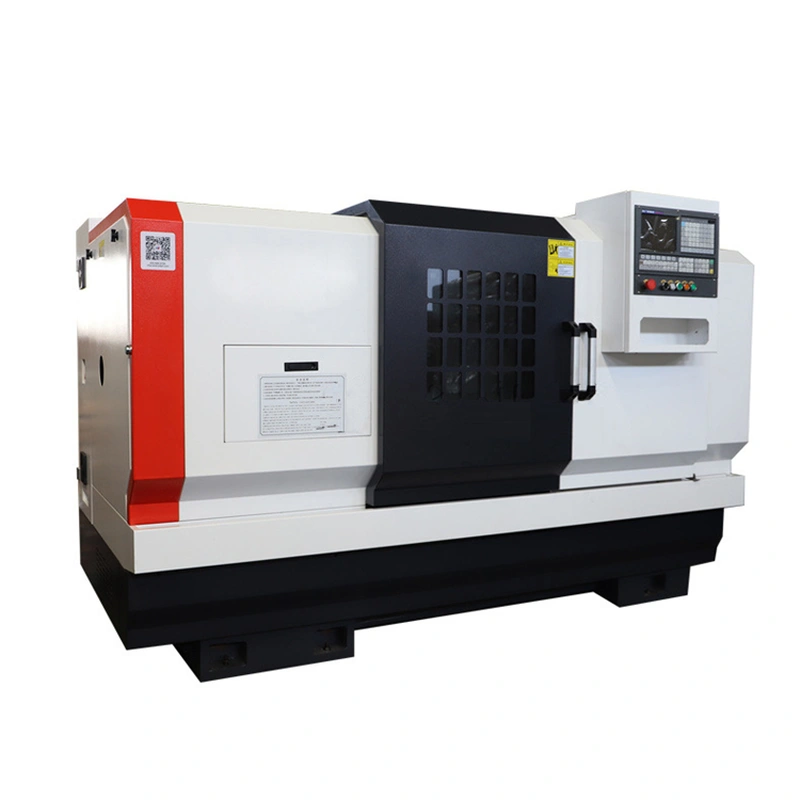

CK61100 Большой токарный станок с ЧПУ

Product description:
1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

расследование

описание

Specification	CK61100
Max. swing over bed	1000mm
Max. swing over carriage	660mm
Max. workpiece length	1500/3000/6000/mm
Spindle nose	C11
Spindle bore	130mm
Max. spindle speed	18-600rpm
Spindle transmission type	3-gear spindle speed , step-less in gear
Spindle motor	15kw
X/Z axis reposition accuracy	±0.005
X/Z axis feed motor torque	15/22NM
X/Z axis fast feeding speed	4/5m/min
Tailstock sleeve diameter	100mm
Tailstock sleeve travel	250mm
Tailstock sleeve taper	MT6
Section of turning tool	40×40
Guide form	flat bed
Tool post form	electric turret
Packing dimensions	4750/5500/8500×2000×2000mm
weight	6000/8500/13500kg
