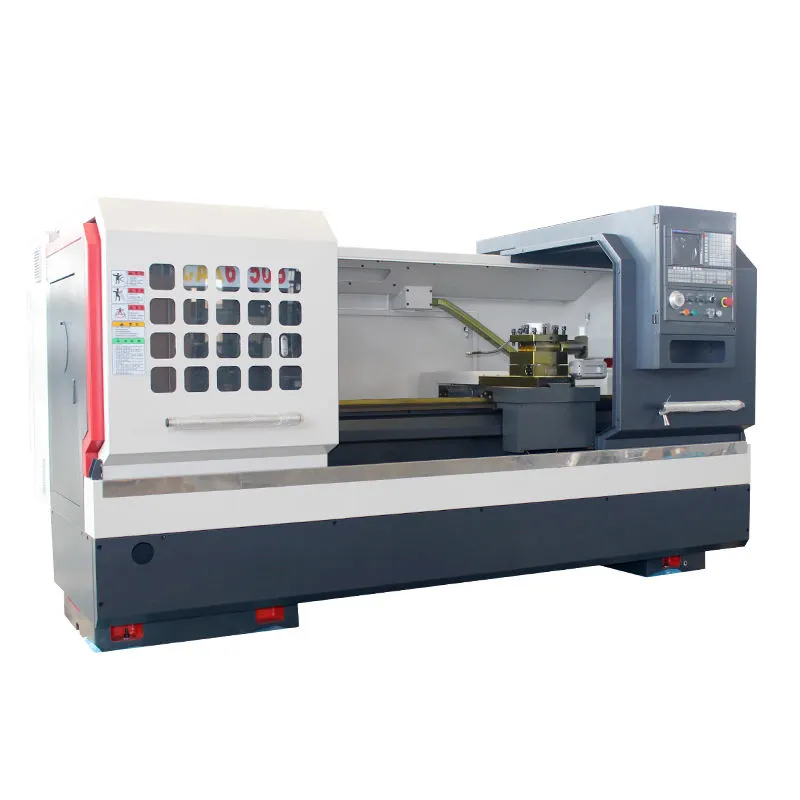

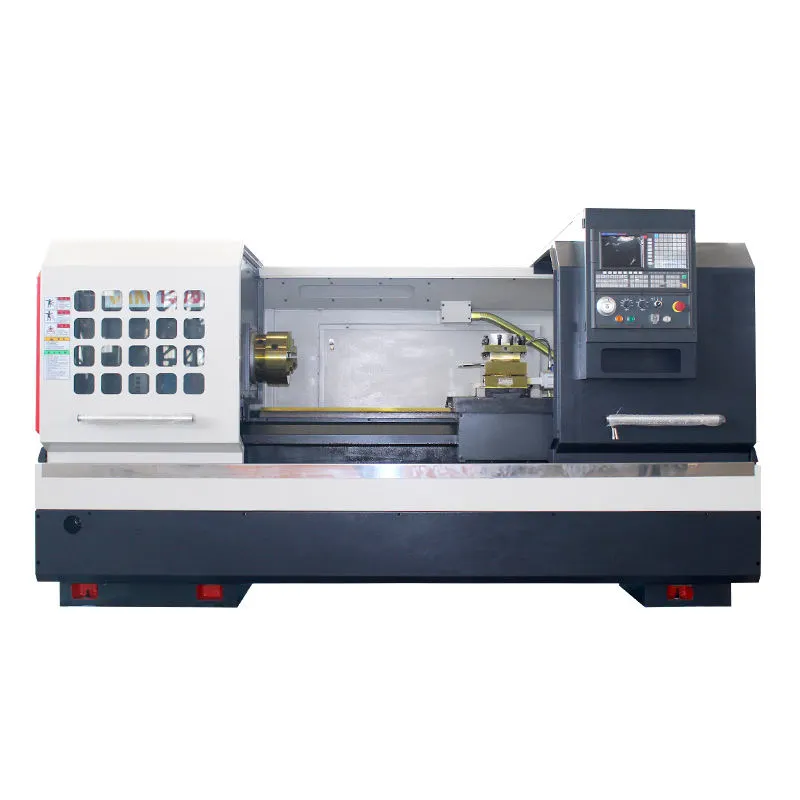

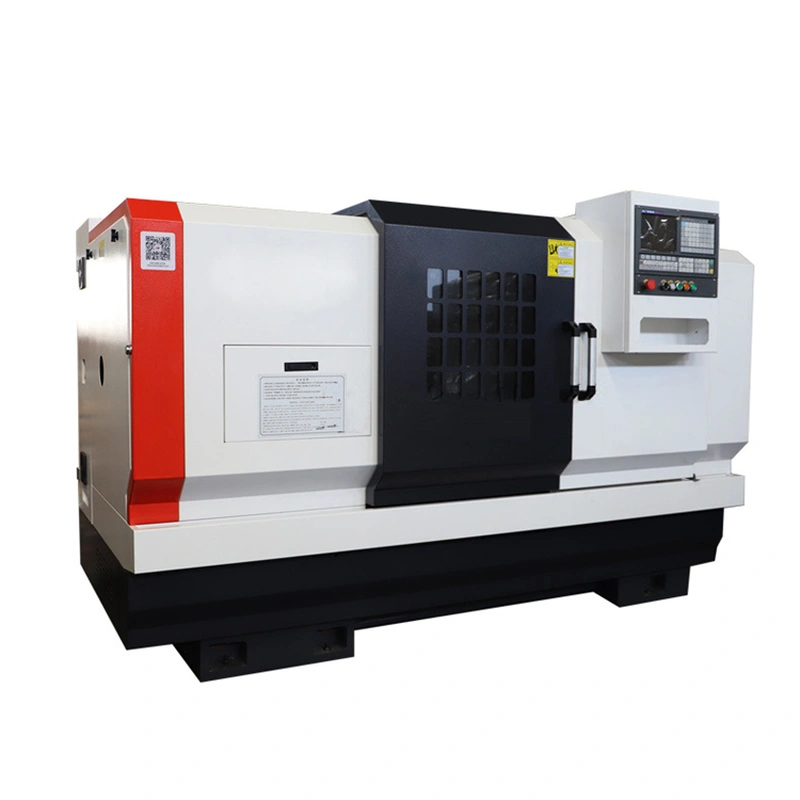

CK6180 Токарный станок с ЧПУ для обработки метала

CK6180 Токарный станок с ЧПУ для обработки метала

Product description:
1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

расследование

описание

Specification	CK6180
Max.swing over bed	Ф800mm
Max.swing over carriage	Ф560mm
Max. cutting length	1500/2000/3000mm
Rail width	460mm
Spindle nose	A2-8 or A2-11
Spindle bore	Ф86mm or Ф105mm
Taper of spindle bore	Ф90mm 1:20 or Ф110mm 1:20
Chuck size	15"
Range of spindle speed	100-1600 or 3 steps:30-150，,10-500,150-1200rpm
X-axis travel	380mm
Z-axis travel	1500/2000/3000mm
X/Z rapid speed	5/8m/min
X/Z screw	3206/5010
Electronic turret	4 or 6 or 8
Max.section of tool	25x25mm
Stroke of tailstock sleeve	235mm
Diameter/Hole of tailstock sleeve	Ф90mm/MT5
Main motor power	11kw
Coolant pump power	250w
Overall dimensions L x W x H	3320/3830/4830x1600x1830mm
Packing size L x W x H	3520/4030/5030x1760x2030mm
Net weight	4100/4600/5400kg
Gross weight	4500/5000/6000kg
